When speed, repeatability, and safety matter, ball lock pins are a practical choice. Unlike standard bolts or clevis pins, they can be inserted and removed quickly while still providing positive retention.

Many customers choose this category because it helps them:

• Reduce setup time on fixtures, tooling, and adjustable equipment
• Avoid loose hardware that needs extra tools for installation
• Improve repeatability in parts that need frequent repositioning
• Match the environment with the right material and finish
• Simplify maintenance with reusable quick-release hardware

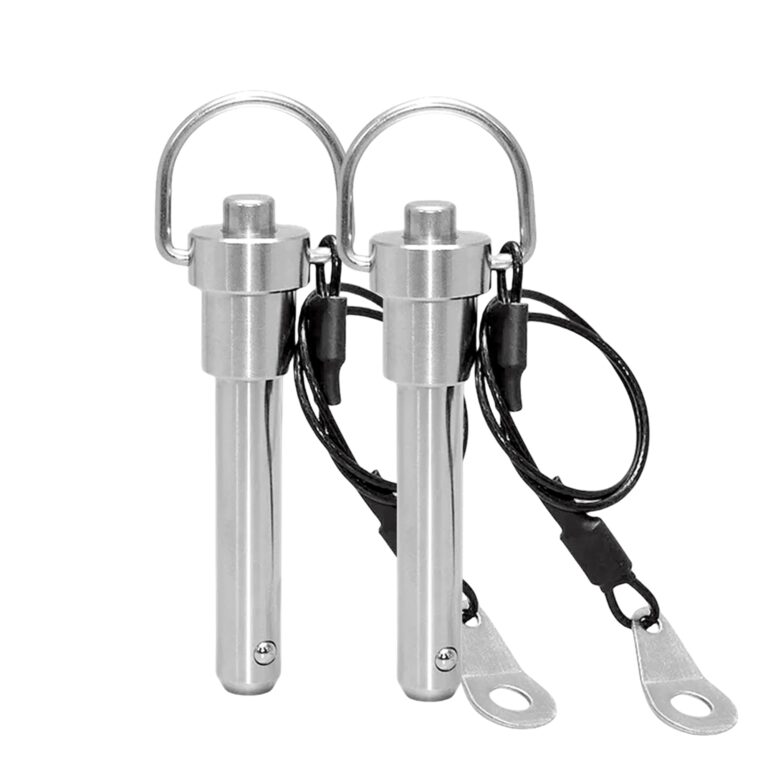

A typical ball lock pin uses a push-button mechanism that retracts the locking balls for insertion and removal. Once released, the balls expand to hold the pin in place. This simple design makes the product useful across many industries, from fabrication and machinery to motorsports and marine equipment.

Our category selection is built for buyers who need clear specifications. You can shop by:

• Pin diameter
• Grip length
• Overall length
• Handle style
• Material
• Corrosion resistance
• Application needs

If you are ordering for a technical project, always confirm dimensions, load requirements, and hole tolerances from your drawing or equipment manual before purchase.

How to Choose the Right Ball Lock Pin

Choosing the right pin starts with fit. A quick-release pin that is even slightly off can lead to poor alignment or unreliable retention.

Focus on these points before you buy:

1. Shank Diameter

The shank diameter must match the hole size closely. Too small, and the pin may rattle or shift. Too large, and it may not insert smoothly.

2. Grip Length

Grip length is the usable length under the head or handle. This dimension must match the thickness of the parts being fastened.

3. Material

Material affects strength, corrosion resistance, and service life.

Common options include:

• Stainless steel for corrosion resistance and outdoor use
• Alloy or hardened steel for higher strength in demanding environments
• Aluminum handle components where lower weight is useful

4. Handle Style

Different handle styles suit different workflows.

• Ring handle: easy to pull, often used where a lanyard may be attached
• T-handle: good grip with gloves or in maintenance settings
• Button handle: compact and clean for tight spaces

5. Operating Environment

Think about moisture, chemicals, dirt, vibration, and temperature. In wet or corrosive settings, stainless steel is often the better choice.

6. Load and Safety

Ball lock pins are excellent for retention and quick positioning, but they are not a universal replacement for every structural fastener. Check the required load, safety factor, and application standard before using them in critical assemblies.

Ball Lock Pins Use Cases / Applications

Ball lock pins are used anywhere parts need to be secured and released quickly.

Common applications include:

• Manufacturing fixtures and jigs
• Machine guards and access panels
• Agricultural and utility equipment
• Marine hardware and outdoor equipment
• Motorsport and performance vehicle setups
• Ground support and transport equipment
• Medical carts, stands, and mobile assemblies
• Adjustable frames, racks, and platforms

Many customers prefer ball lock pins in setups that require frequent changeovers. They help reduce downtime and make routine adjustments faster than threaded fasteners.

Materials / Features / Specifications Explained

Understanding the main specifications will help you compare products more accurately.

Key Terms

• Diameter: the shank size that fits the hole
• Grip Length: the working length of the pin through the clamped parts
• Overall Length: full length from handle to tip
• Locking Balls: spring-loaded balls that retain the pin after insertion
• Handle Type: the shape used to press, pull, or hold the pin
• Retention Option: some pins can be paired with lanyards to prevent loss

Feature Benefits

• Push-button release allows fast installation and removal
• Positive ball retention helps prevent accidental pull-out
• Reusable design supports repeated service cycles
• Material choices let you balance strength, weight, and corrosion resistance

For demanding applications, always review the product specification sheet and your engineering requirements together.

Ball Lock Pin Style Comparison

FAQs

What is a ball lock pin?

A ball lock pin is a quick-release fastening device with a push button and locking balls near the tip. When the button is pressed, the balls retract so the pin can be inserted or removed. When released, the balls expand to retain the pin.

How do I measure a ball lock pin?

Start with the shank diameter and grip length. Then check the overall length and handle style. The grip length should match the total thickness of the materials being secured.

What material is best for ball lock pins?

It depends on the environment. Stainless steel is often preferred for moisture, washdown, or outdoor use. Alloy steel may be a better fit when higher strength is the main priority.

Are ball lock pins reusable?

Yes. Ball lock pins are designed for repeated insertion and removal. Regular inspection helps ensure the button action and locking balls still operate smoothly.

Can ball lock pins replace bolts?

Sometimes, but not always. They are ideal for quick positioning and frequent removal. For high-load or permanent structural joints, a bolt or another engineered fastener may still be required.

Should I choose inch or metric ball lock pins?

Match the system used in your equipment or drawing. Mixing inch and metric sizes can cause fit problems, poor retention, or damage to the hole.

How do I maintain ball lock pins?

Keep them clean, inspect for wear, and replace any pin with damaged locking balls, weak spring action, or visible corrosion. In dirty environments, light cleaning and routine checks can help extend service life.

Order with Confidence

Need help choosing the right ball lock pins for your application? Our team can help you confirm diameter, grip length, material, and handle style before you order. Shop with confidence using clear product specs, secure checkout, and straightforward shipping and returns policies. If product reviews are available, they can also help you compare real-world use before you buy.
